Import LandXML File
GeoCadastre is able to read a LandXML file using the Conversions/LandXML/Import LandXML File menu option.
The LandXML file will be read in and converted to parcels in geocadastre format.
They can then be viewed on the screen and manipulated in the normal way.

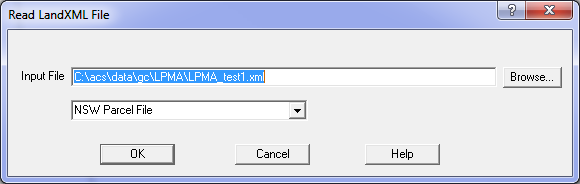

Parcel File Type
You can choose one of three types of file.
Because each government authority has different semantic interpretation of the data in a LandXML file
you must select the correct option before pressing the OK button.
- NSW Parcel File
- QLD Parcel File
- NZ Parcel File
It will read in the following items:
<CgPoints> - Easting, Northing, [Height,] Name, Code
<Parcel> - read in as a string
